What to Specify in a Steam Oven Control System Project

A Steam Oven Control System should be specified around the appliance’s cooking modes, user interface, sensors and safety architecture. Xiaofei’s product page describes systems for steam ovens, combi steam ovens and integrated kitchen appliances, with functions including steam mode, hot-air circulation, steam baking, fermentation, defrosting and heat retention. The page says technical parameters are project-specific; it does not publish voltage, sensor, output or communication specifications for a particular controller. This guide helps OEM teams prepare the engineering inputs needed for a reliable quotation and prototype review without assuming unpublished component capabilities.

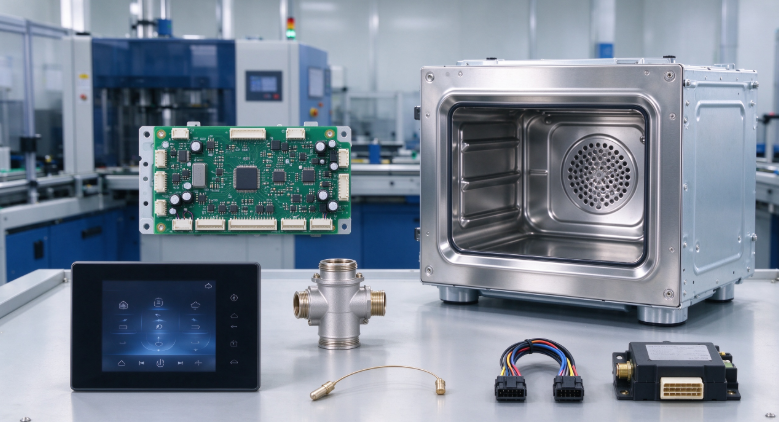

Project data to confirm for a steam oven control system

Start from appliance functions and operating modes

A control system is not just a board; it coordinates inputs, outputs, display behavior and appliance logic. Begin with the intended cooking modes and their sequence. Xiaofei lists steam, hot-air circulation, steam baking, fermentation, defrosting and heat retention. The OEM should translate each mode into a functional description: which actuators operate, what feedback is monitored, what transitions occur, how the user selects a mode, and what happens if a sensor or subsystem behaves unexpectedly.

A mode matrix can separate standard functions from optional ones. For each mode, specify start conditions, target behavior, termination criteria, user adjustments and fault response. For example, a steam mode may involve coordination between water handling, heater control and temperature feedback, but the exact hardware and logic depend on the appliance design. Do not assume Xiaofei’s product includes a specific pump, valve, sensor or communications interface unless the supplier confirms it for the project.

Define sensors, actuators and electrical interfaces

Before a controller can be quoted, the appliance team should identify every input and output. Inputs may include temperature sensors, door or reservoir detection, user keys and other interlocks; outputs may include heater control, fans, indicators, pumps or valves, depending on the appliance architecture. These are examples for requirements planning, not a confirmed inventory of Xiaofei’s product. Provide the sensor type, electrical range, connector, cable length, actuator load and switching method for each interface.

A useful interface table records signal name, normal state, operating range, connector pinout, failure state and required diagnostic response. List any serial communication, display or touch-panel requirements separately. Xiaofei states that it supports hardware and software coordination and control-panel adaptation, but public information does not give protocol names or electrical ratings. Confirm these points with the engineering team and capture approved drawings and firmware revisions in the project record.

Plan the user interface around the cooking sequence

The control panel should communicate mode, temperature or time settings, progress, warnings and completion states in language and symbols that match the destination market. Xiaofei lists control-panel adaptation and mode-logic customization as capabilities. OEMs should provide a user-flow diagram or wireframes, button or touch behavior, display constraints, font and language requirements, and accessibility considerations. A panel that works in a lab may be less usable when viewed through a steam-covered door or under kitchen lighting, so review it on the actual appliance.

Decide whether the product needs preset programs, manual adjustment, delayed start, saved settings or lockout behavior. These features affect firmware, memory, interface design and verification effort. Create a requirements list that distinguishes mandatory features from later options. The public page does not state the number of stored programs, display technology or connectivity features. Ask for a project-specific proposal and verify any advertised function on a working prototype before freezing the user experience.

Treat protection logic as a design requirement

Protection logic should be considered from the first requirements review. The appliance team should identify foreseeable faults such as abnormal sensor readings, overheating, blocked airflow, door opening during a cycle or a failed actuator, then define how the system detects and handles each condition. The appropriate response may involve a warning, output shutdown, restricted restart or service indication depending on the appliance risk analysis. The controller supplier can contribute implementation details, but the appliance manufacturer remains responsible for system-level safety decisions and verification.

The IEC 60335-2-6:2024 standard covers safety of stationary household electric cooking appliances including ovens and steam ovens, within stated voltage scope. It is a product safety standard, not a certification of Xiaofei’s control system. Engineering teams should determine the applicable current editions and national adoptions for the finished appliance, and coordinate controller testing within that full system evaluation. Never claim a controller or appliance complies simply because a standard is referenced in project materials.

Clarify environmental and operating conditions

A controller’s physical environment affects component selection and enclosure design. The OEM should state the location of the board, ambient and internal temperature conditions, humidity, condensation exposure, cleaning chemicals, vibration and expected service access. Steam appliances require careful attention to moisture paths, wiring entry points and separation between wet and electrical areas. These are engineering considerations; no environmental rating for Xiaofei’s steam oven controller is published on the product page.

Build a staged development and verification plan

An OEM project can move from requirements review to interface definition, prototype, engineering validation, design changes and production approval. At each stage, the buyer should keep a version-controlled record of hardware, software, drawings and test results. Define who approves mode logic, user-interface text, fault handling and electrical integration. A prototype review should confirm actual behavior rather than relying on a feature list, and every issue should have an owner and closure status.

Organize the RFQ around project data

A useful inquiry includes the appliance type, target market, rated supply, heater and actuator list, sensor details, operating modes, user interface, languages, connectivity, enclosure constraints, annual demand estimate and target launch timing. Attach electrical schematics, interface drawings and sequence diagrams if available. Xiaofei’s page specifically says technical parameters can be reviewed according to appliance requirements, making a structured design brief more valuable than a request for a generic price.

Protect product claims and compliance statements

Marketing should describe functions that are present in the approved appliance and supported by test records. If a page says a controller supports fermentation, cleaning or heat retention, confirm which modes are included in the specific project version before listing them for a particular appliance. A general product-family capability is not evidence that every function is standard or included in a quoted board.

Frequently Asked Questions

Does Xiaofei publish detailed electrical specifications for this controller?

No. Its page says technical parameters are reviewed according to appliance requirements; exact ratings must be confirmed for a project.

Does IEC 60335-2-6 certify Xiaofei’s control board?

No. It is an appliance safety standard for stationary cooking appliances, including steam ovens. It does not certify this specific controller.

Which functions are listed on the product page?

Steam, hot-air circulation, steam baking, fermentation, defrosting and heat retention are listed as core control functions.
